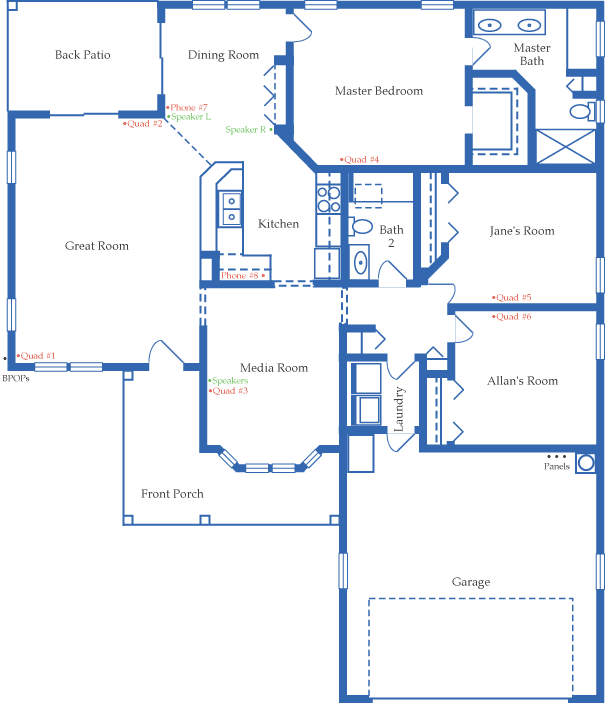

These are the drops as installed by Sheard Goodwin during the week of July 8th 2002. This differed only slightly from the initial request. Wiring consists of Cat-5 and coax cable terminated on a panel in the garage. Ethernet wiring is on block A, telephone is on block B, and coax cable is on block C.
The BPOPs for both telephone and Cable are on the north side of the house just outside the quad drop marked 1 on the diagram. Cable has a green box to the south of the driveway where the digital service filter (service blocker) was installed until the second service call.
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
